GCYFY-288 Core

GCYFY (Loose tube stranded semi-dry, non-metallic central strength member, polyethylene sheath)

Execution standard:

YD/T 1460.4 – 2019 Air Blown Micro Cables and Optical Fiber Units for Telecommunications – Part 4: Micro Cables

Consulting Product

Product Details

Air Blown Micro Cabling Product Series 288-Core

Product Application:

This optical cable is suitable for air blown laying method.

Product Features:

Lightweight and small outer diameter;

Excellent bending performance;

Excellent lateral compression resistance, tensile strength, and good temperature performance;

Operating temperature: -40 ℃ to+70 ℃

transmission performance

Fiber Type G.652 1310nm/1550nm
Maximum Attenuation (dB/km) 0.36/0.24
Typical Attenuation (dB/km) 0.34/0.22

Note: Other optical fibers that meet user needs can also be provided

GCYFY

Product Structure Diagram:


Product Description:

GCYFY (loose layer twisted semi dry, non-metallic center reinforcement, polyethylene sheath)

Execution standard:

YD/T 1460.4-2019 Gas blown miniature fiber optic cables and fiber optic units for communication – Part 4: Miniature fiber optic cables

Technical parameters (typical values):

Fiber Count Structure Outer Diameter (mm) Weight (kg/km) Tensile Force (N) Crushing Force (N) Bending Radius (mm)
Long-term Short-term Long-term Short-term Static Dynamic
288 1+9+15 8.0 62 0.15G 0.5G 150 450 100 200

note

  1. D refers to the diameter of the optical cable;
  2. Corresponding technical parameters can be adjusted according to customer needs;

Related Products

CAT5e+GJPFJH

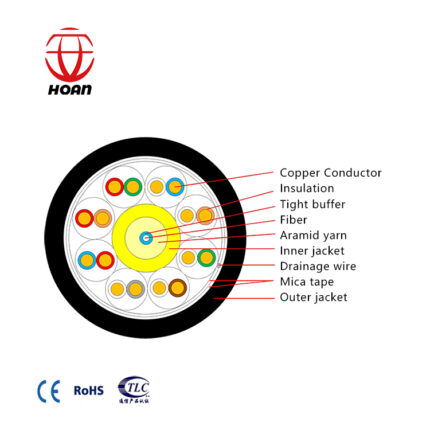

Product Description: HSYZ5E+GJPFlH (Loose tube stranding, PE insulation, Tight buffer fiber structure, Aramid yarn strengh member ; Mica tape ;LsZH Outer sheath) Standards: YD/T 1019-2013 Polyolefin insulated horizontal twisted pair cables for digital communicationsYD/T 1258. 2-2009 The series of indoor optical fiber cables Part 2: simplex and duplex cable for use in terminated cable assemblies
