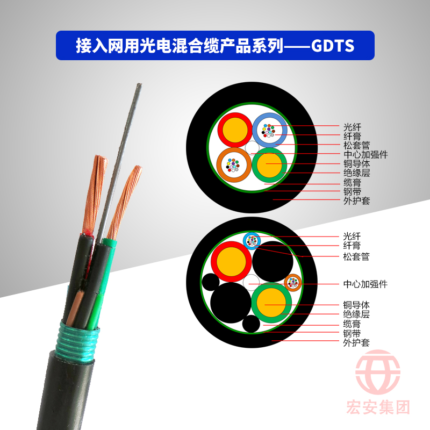

GDTS
GDTS
Click to enlarge

GDTA

Product Description:

GDTA (loose layer twisted structure, metal reinforcement, cable paste filling, aluminum polyethylene adhesive sheath)

Execution standard:

YD/T 2159-2010 Optoelectronic Hybrid Cable for Access Network

Consulting Product

Product Details

GDTA

Loose layer twisted structure, metal reinforcement, cable paste filling, aluminum polyethylene adhesive sheath

Product Description:

GDTA (loose layer twisted structure, metal reinforcement, cable paste filling, aluminum polyethylene adhesive sheath)

Execution standard:

YD/T 2159-2010 Optoelectronic Hybrid Cable for Access Network

Technical parameters (typical values):

core count Conductor specifications structure Outer diameter (mm) Weight (kg/km) Tensile force (N)long-term                  short-term Flattening force (N)

long-term                  short-term

 Bending radius (mm)

static                    dynamic
24 2×1.0 1+6 12.4 155 600 1500 300 1000 10D 20D
24 2×1.5 1+6 14.0 196 600 1500 300 1000 10D 20D
24 2×2.5 1+4 13.8 238 600 1500 300 1000 10D 20D
24 2×4.0 1+4 14.9 298 600 1500 300 1000 10D 20D
24 2×6.0 1+4 16.3 377 600 1500 300 1000 10D 20D
24 2×10.0 1+4 19.6 574 600 1500 300 1000 10D 20D
24 2×16.0 1+4 22.2 793 600 1500 300 1000 10D 20D

note

  1. D refers to the diameter of the optical cable;
  2. Corresponding technical parameters can be adjusted according to customer needs;
  3. The water blocking method can be adjusted according to customer needs;
  4. Specific designs for flame-retardant, rodent proof, and ant proof optical cables can be made according to customer needs.
